Hot-selling Products Small Adjustable Stroke Double Output Shaft Standard Piston Air Pneumatic Cylinder SDA

Product characteristics:

1. Our standard cylinder;

2. Aluminum round tube cylinder body is adopted;

3. The front and rear covers and cylinder pipes are connected by threads;

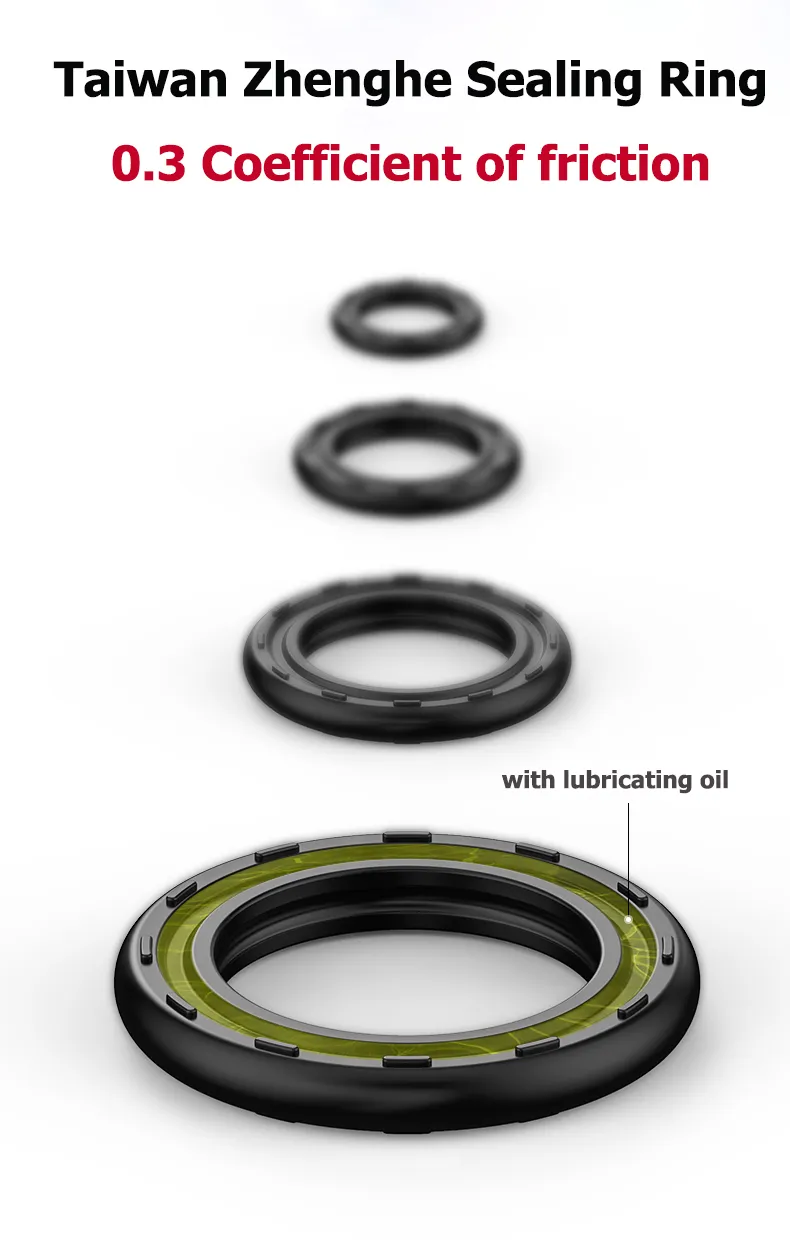

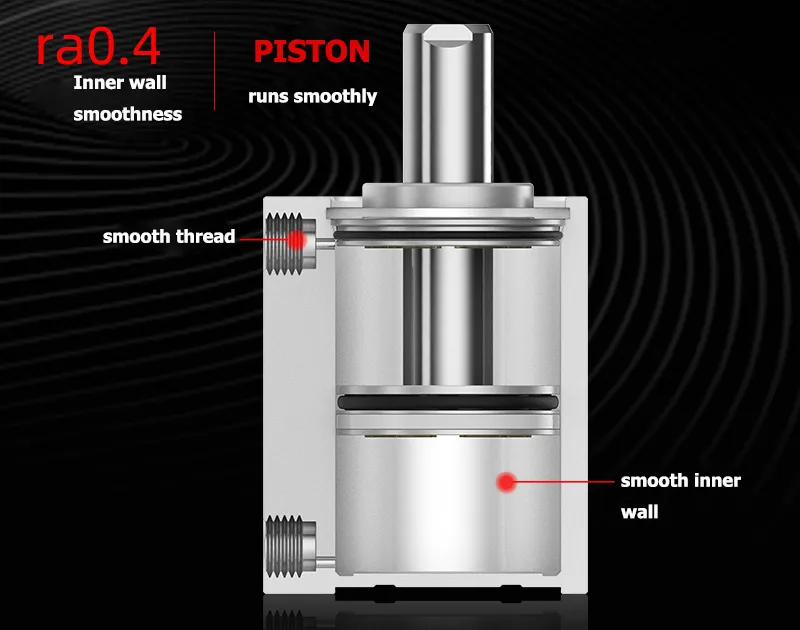

4. The piston seal adopts a special-shaped two-way sealing structure, with compact size and oil storage function;

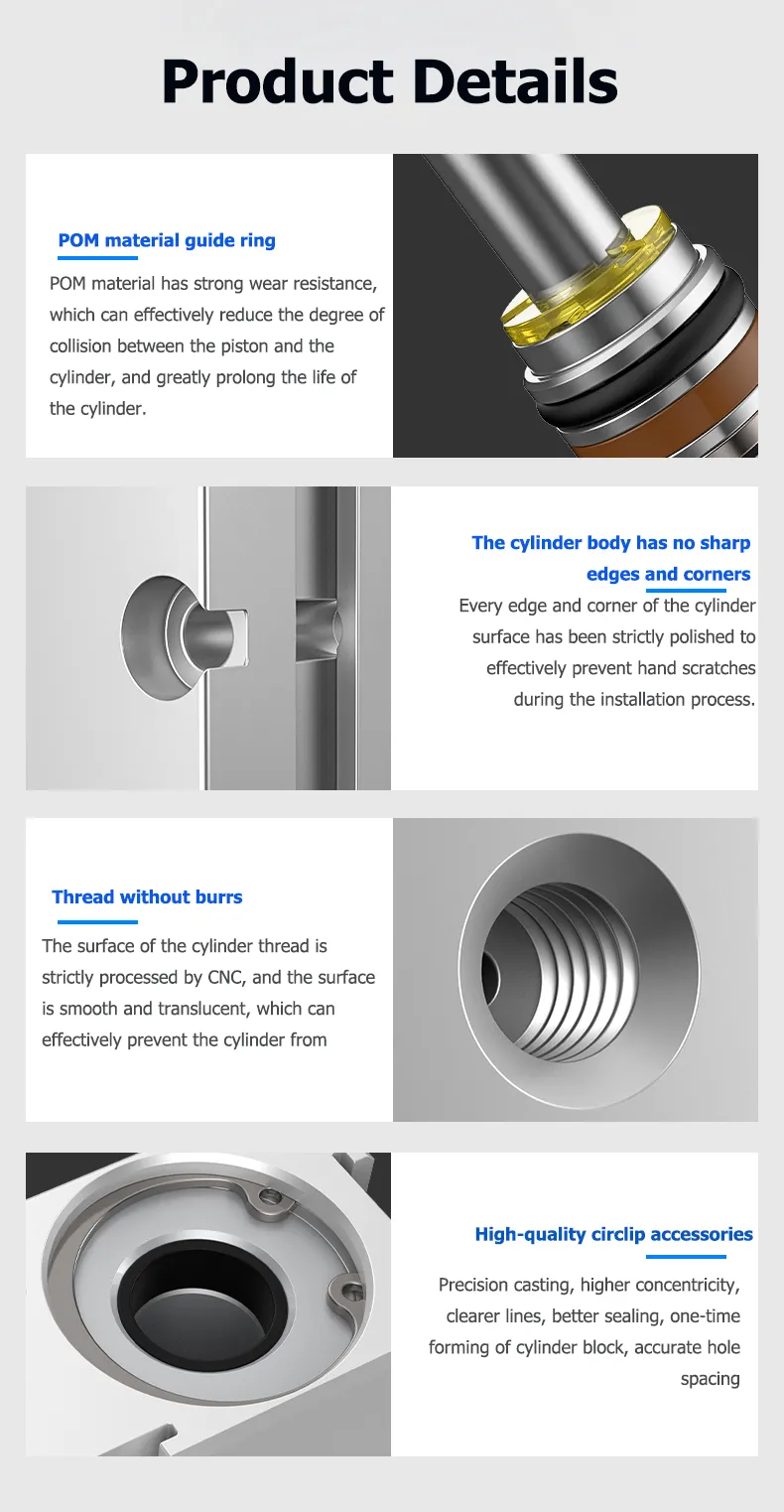

5. Front end cover is guided by self-lubricating bearing, with good lubrication and guidance performance;

6. Various rear cover forms make the cylinder installation more convenient;

EmailContact
  • Details
  • Free Sample
  • Warranty policy

Specification Parameters

Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
Weight (KG): 1.5
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Motor, Pressure vessel, Gear, Pump
Standard or Nonstandard: Standard
Structure: Piston Cylinder
Power: Pneumatic
Body Material: Aluminum
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Product name: SDA Series Mini Cylinder
Model: SDA
Application: Machinery
Material: Alumium Alloy
Working Pressure: 0.1-1.0MPa
Bore size: 10-40 mm
Stroke: NM
Maximum Stroke: NM
Port Size: M5-0.8(mm)
Working Temperature: -20 to 80°

Inner diameter mm   12 16 20 25 32 40 50 63 80 100
Action mode MSAL,MTAL series   Double action
Other series   Single action push type        single action lead-in
Working medium   Air
Operating pressure range Singel action   0.1-1.0MPa (14-145Psi)
Double action   0.2-1.0MPa (28-145Psi)
Guaranteed pressure resistance   13.5kgf/cm2
Working temperature   5~70℃
Use speed range Singel action   30-500
Double action   50-500
Buffer form   Crash Pad
Piping port   M5X0.8 PT1/8 PT1/4 PT3/8

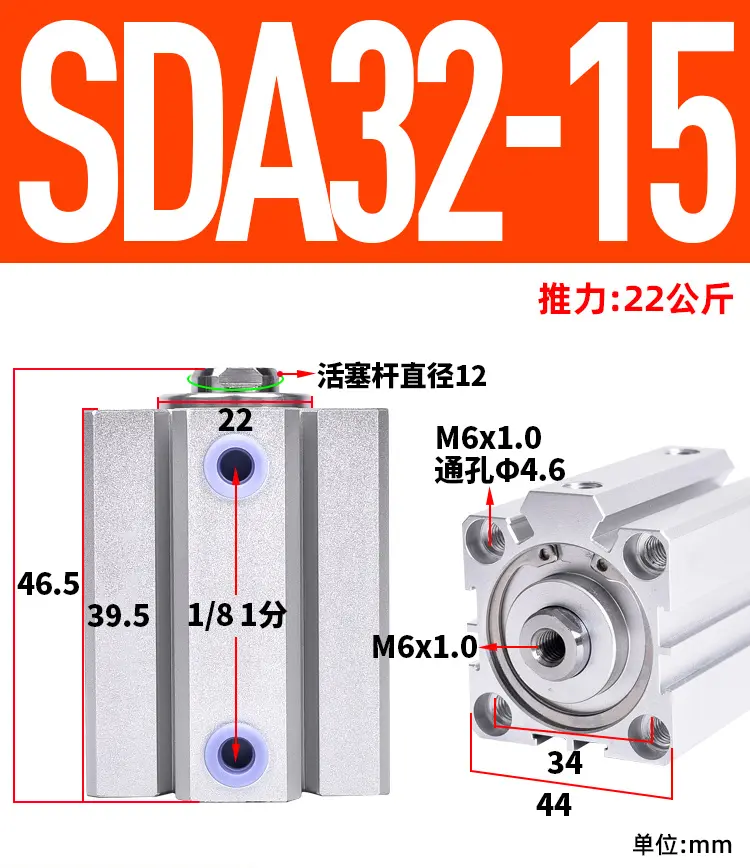

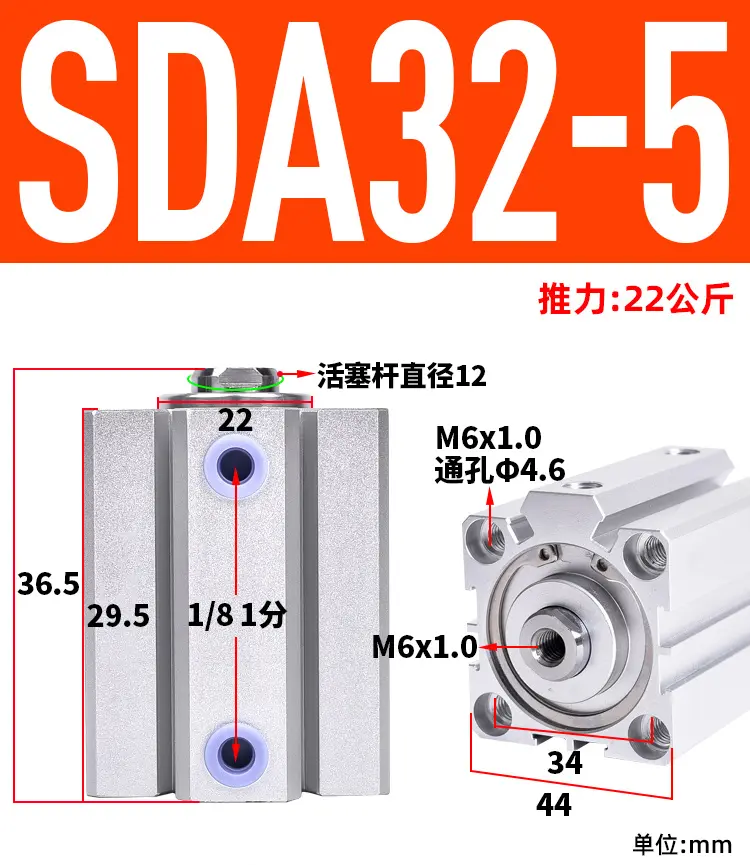

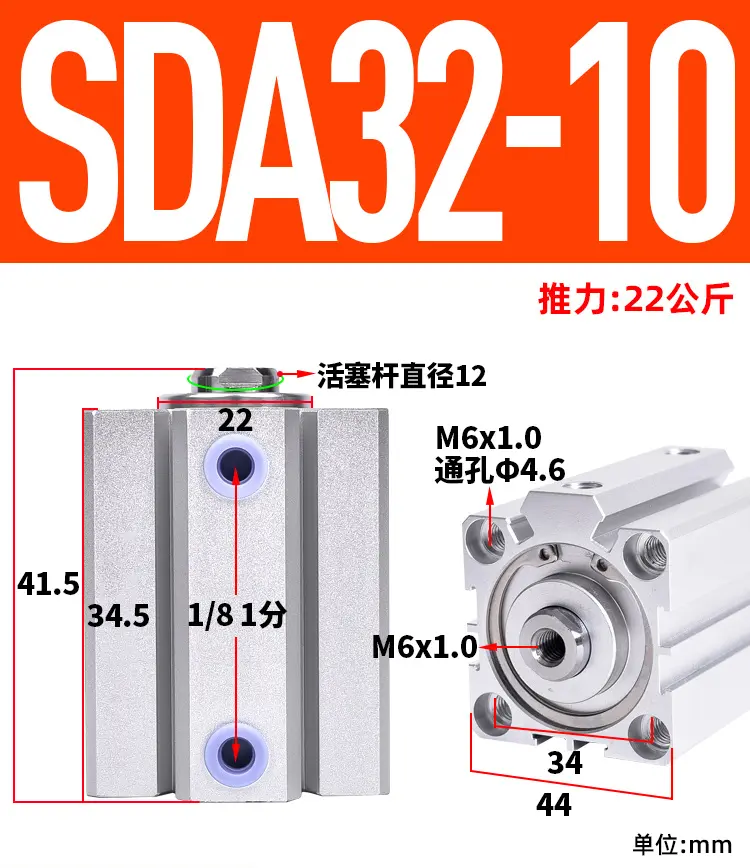

SDA MINI CYLINDER (1)

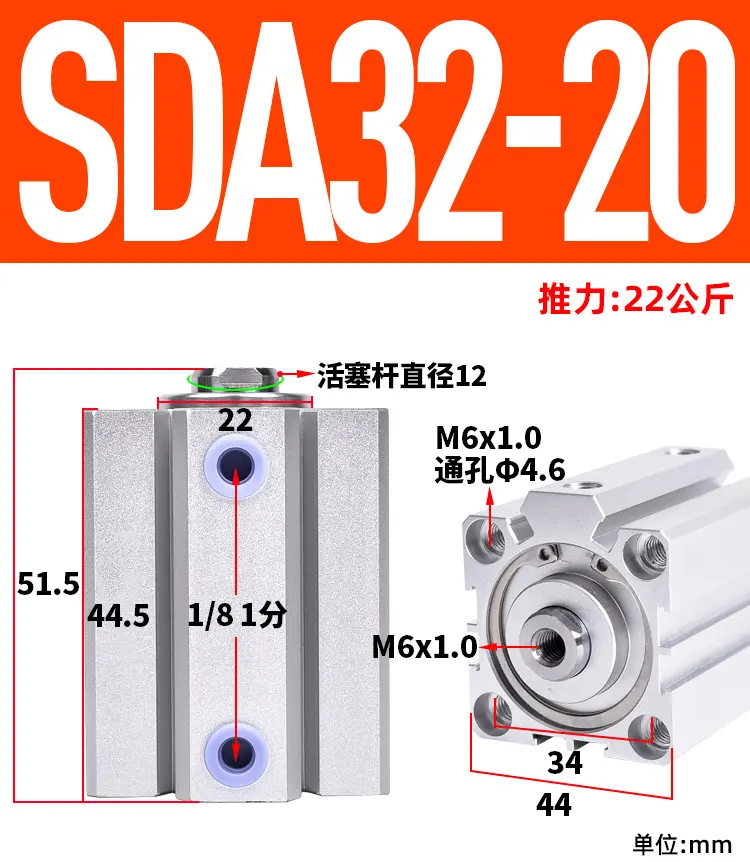

SDA MINI CYLINDER (2)

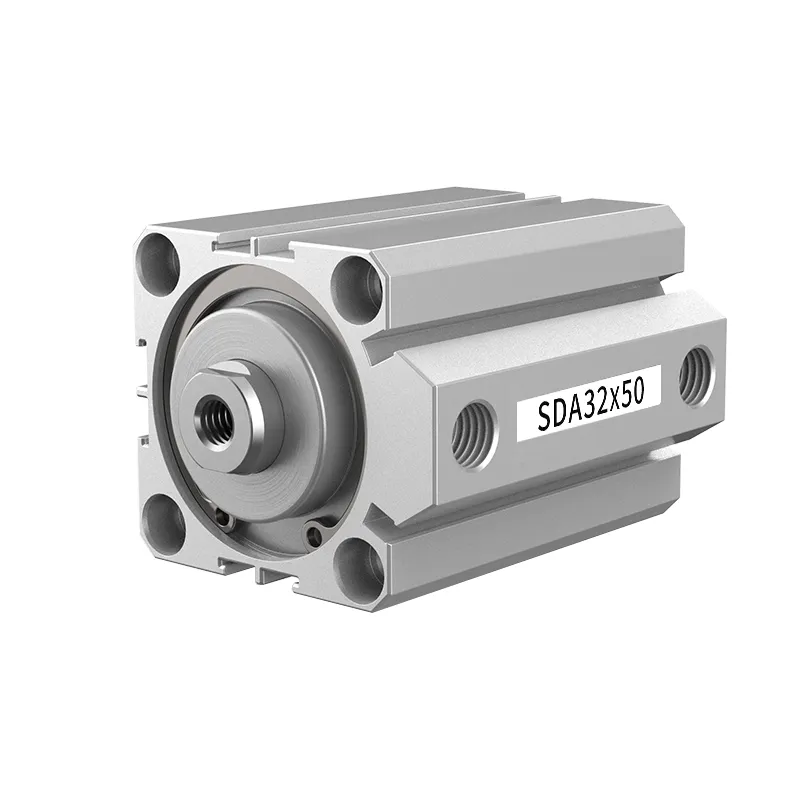

SDA MINI CYLINDER (4)
SDA MINI CYLINDER (5)
SDA MINI CYLINDER (6)
