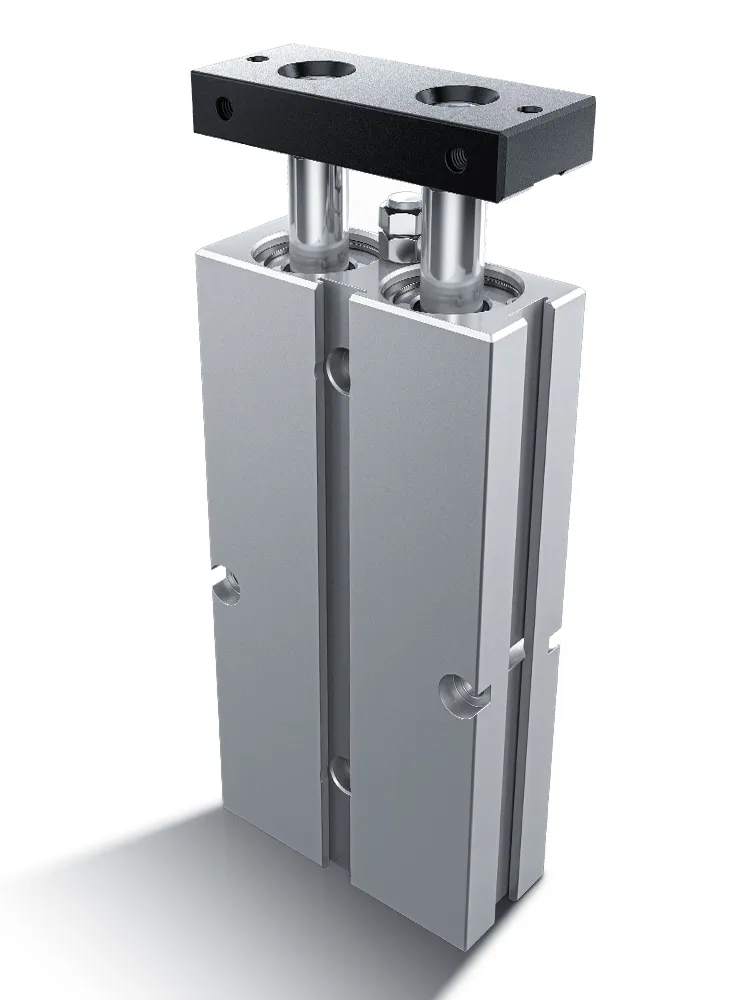

Tda/tn32x10 Tn32x20 Tn32x25 Tn32x30 Tn32x40 Tn32x50 Tn32x60 Tn32x80 Tn32x100 Tn32x150 Tn32x200 Twin Rod Cylinder

Specification Parameters

Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
Weight (KG): 1.5
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Motor, Pressure vessel, Gear, Pump
Standard or Nonstandard: Standard
Structure: Piston Cylinder
Power: Pneumatic
Body Material: Aluminum
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Product name: TDA Double Rod Cylinder
Model: TDA
Application: Machinery
Material: Alumium Alloy
Working Pressure: 0.1-1.0MPa
Bore size: 10-40 mm
Stroke: NM
Maximum Stroke: NM
Port Size: M5-0.8(mm)
Working Temperature: -20 to 80°

Inner diameter mm	10	16	20	25	32
Action mode	Double action type
Working medium	Air
Guaranteed pressure resistance	1.5Mpa(215psi)
Operating pressure range	0.1-1.0MPa (14-145Psi)
Working temperature	-20~70℃
Operating speed range	30-800
Stroke tolerance range	0~250+1.0		251~1000+1.0		1001~1500+1.0
Buffer form	Crash Pad
Piping port	M5x0.8				PT1/8

Tags：Air Cylinder · Double shaft cylinder · Pneumatic Cylinders

Free Sample Request Process:

Select Your Sample: Browse through our product range and choose the sample you'd like to receive.
Submit Your Request: Fill out the sample request form with your shipping details.
Shipping Cost: While the sample itself is free, the buyer is responsible for covering the shipping fee. Please negotiate the shipping cost with us.
Processing: Once your payment is confirmed, we will process your sample request and ship it to your address.
Receive Your Sample: Your sample will be delivered to you within the estimated shipping time. Enjoy trying our product!

1. The warranty period of this product is eighteen months (subject to thefuselage bar code information). During the warranty period, if the productfails or is damaged under normal use according to the operating manual, ourcompany will be responsible for free maintenance.

2. During the warranty period, if damage is caused due to the followingreasons,a certain maintenance fee will be charged,

Machine damage caused by mistakes in use and unauthorized repairsand modifcations;
Machine damage caused by fre, food, abnormal voltage, other naturaldisasters and Level 2 disasters;
Hardware damage caused by artifcial fall and transportation afterpurchase;
Machine damage caused by failure to operate according to the user manual provided by our company;
Failure and damage caused by obstacles other than the machine (such asexternal equipment factors).

3. When the product fails or is damaged, please fll in all the contents in the”Product Warranty Card” correctly and in detail.

4. The charge of maintenance fees shall be based on our company’s latestadiusted “Maintenance Price List”.

5. This warranty card will not be reissued under normal circumstances.Please keep this card and show it to the maintenance personnel during thewarranty.

6. If you have any questions during the service process, please contact ouragent or our company in time.The company is committed to upgrading new products. If there are anychanges, you can download them from the company website.
