Specification Parameters
Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
Weight (KG): 1.5
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Motor, Pressure vessel, Gear, Pump
Standard or Nonstandard: Rodless cylinder
Structure: Piston Cylinder
Power: Pneumatic
Body Material: Aluminum
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU

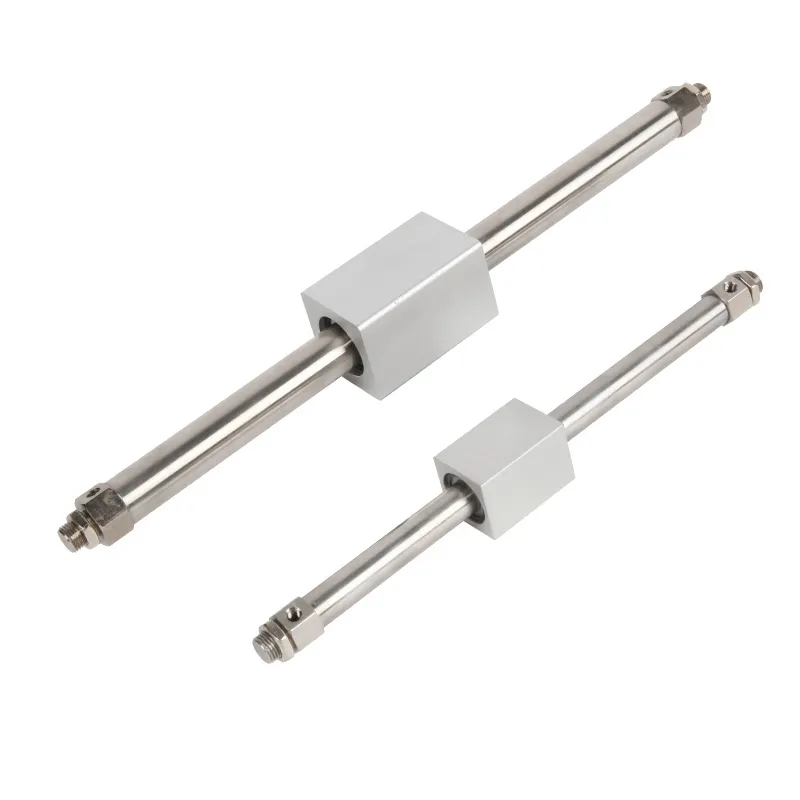

Product name: CY3B/CY3R Rodless Cylinder
Model: CY3B/CY3R
Application: Machinery
Material: Alumium Alloy
Working Pressure: 0.1-1.0MPa
Bore size: 10-40 mm
Stroke: NM
Maximum Stroke: NM
Port Size: M5-0.8(mm)
Working Temperature: -20 to 60°
| Bore | 15 | 20 | 25 | 32 | 40 | |
| Fluid | Air (without oil) | |||||
| Maximum operating pressure (Mpa) | 0.7 | |||||
| Minimum operating pressure (Mpa) | 0.16 | 0.15 | 0.14 | 0.12 | ||
| Ambient and fluid temperature | -10 ~~+60 ℃ | |||||
| Piston speed (nm/s) | CY3B:50-400; CY3R:50-500 | |||||
| Buffer | Cushioning at both ends | |||||
| Magnetic holding force (N) | 137 | 231 | 363 | 588 | 922 | |

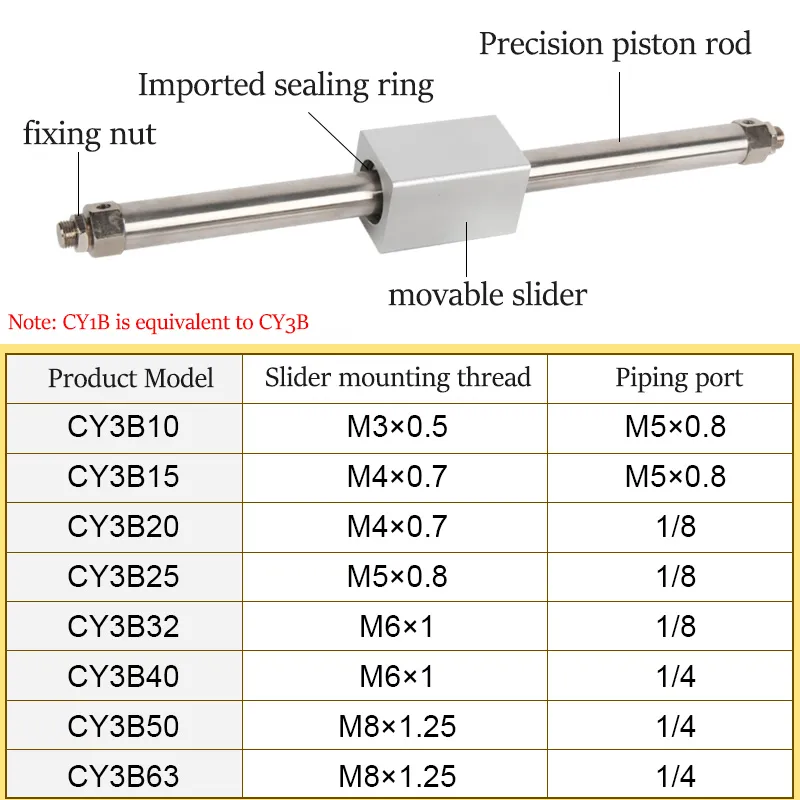

| Piping port | M5X0.8 | RC1/8∙NPT1/8∙G1/8 | ||||
