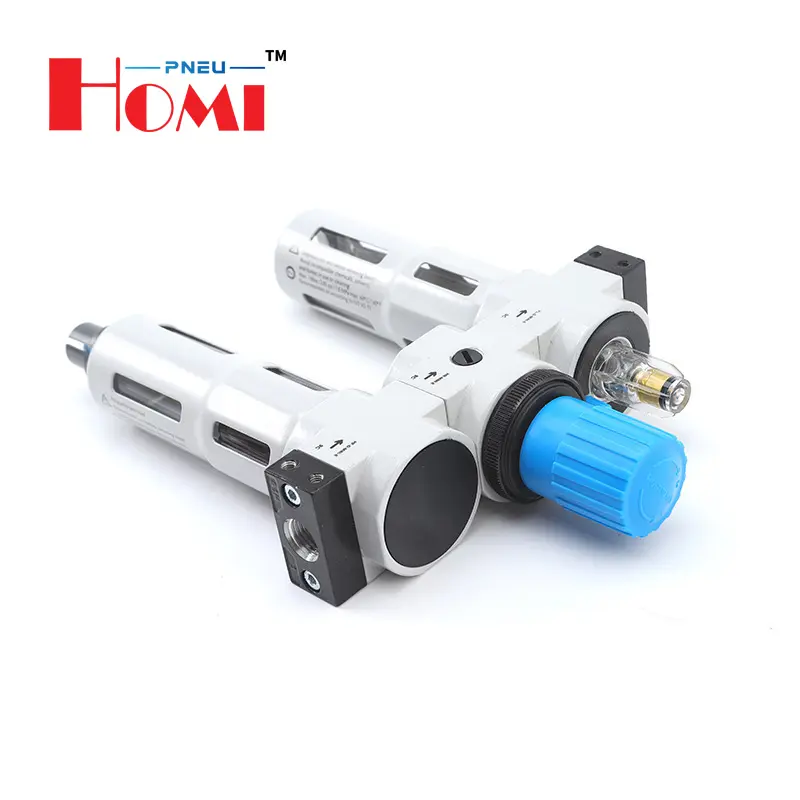

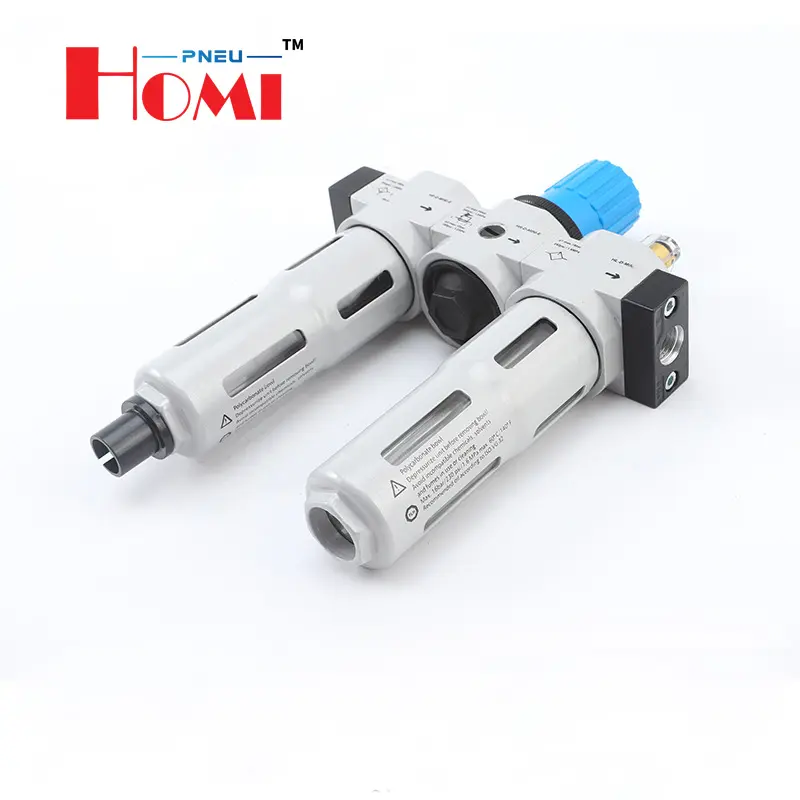

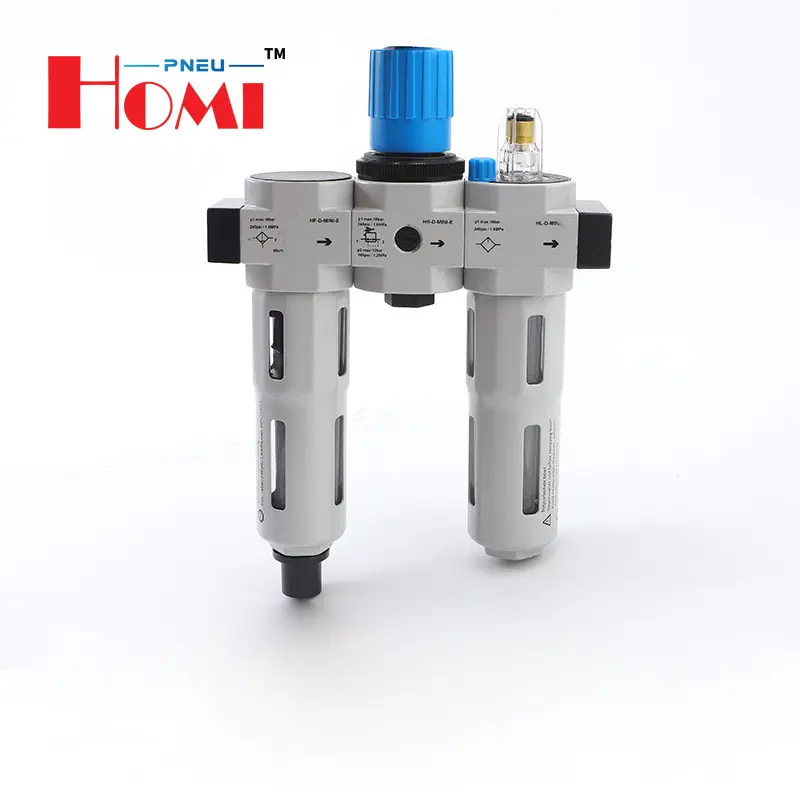

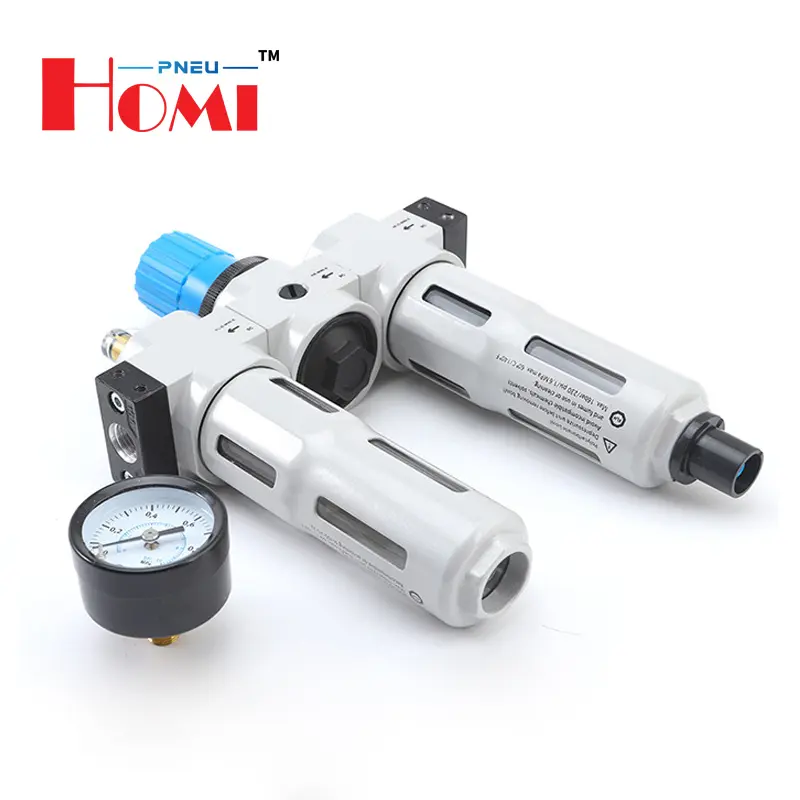

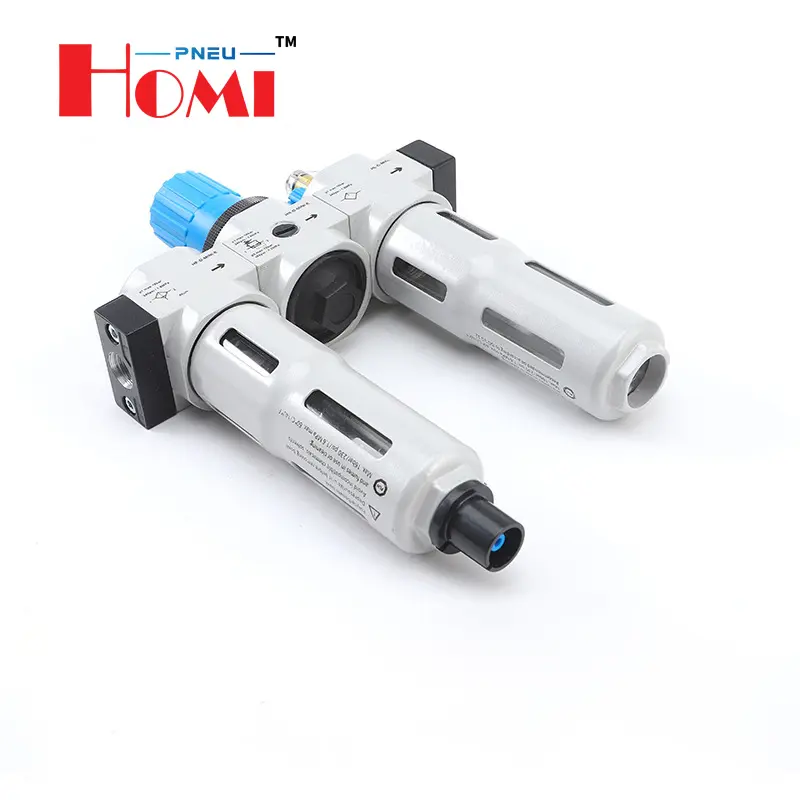

Pneumatic Filter Regulator Lubricator Air Source Treatment Three-Union HC

Short Description:

Product characteristics

  1. Structure with light and compact,easy to installation.
  2. The pressure of self-lock institution can prevent the pressure,the interference and produce reshuffled.
  3. The pressure with small lossing,the water with high efficiency.
  4. Transparent inspection cover,can observed drops of oil quantity size.
  5. Except the standard forms. have another low voltage type for selection(Max. adjustable pressure is 0.4 MPa).
EmailContact
  • Details
  • Free Sample
  • Warranty policy

Specification Parameters

Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining, Other
Weight (KG): 0.74
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Type: Filter, FESTO
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Product name: Air Source Treatment Unit
Model:HFC
Application: Pneumatic Systems
Fluid: Gas Water Oil Air
Working pressure: 0.05~0.85MPa
Working Temperature: -5 -- +60 Degree
Acting type: Filter
Port size: 1/4
Body Material: Alluminum Alloy

Technical Specifications
Model Size Mircro Mini Midi Maxi
Port Size G1/8 G1/4 G3/8 G1/2 G3/4 G1
Structural features Pressure reducing valve
Standard proportional oil mist
Installation form Via attachment
Pipe installation
Installation position Vertical installation
Filter Level 5 5 or 40
Pressure adjustment range 0.5,,,7 0.5,,,,7
0.5,,,,12
Pressure monitor M5 air interface G1/8 air interface G1/4 air interface G1/4 air interface
Length(mm) 50 76 95 107
Width (mm) 50 80(104) 110(104) 130(162) 132(182)
Height (mm) 120 212 269 271
Width with connecting plate
Standard rated flow qnN 【L/min】
Model Size Mircro Mini Midi Maxi
Port Size G1/8 G1/4 G3/8 G1/2 G3/4 G1
Pressure adjustment range 0.5,,,7 0.5,,,,7
0.5,,,,12
Filter Level 5 5 or 40
FESTO HC1 (1)

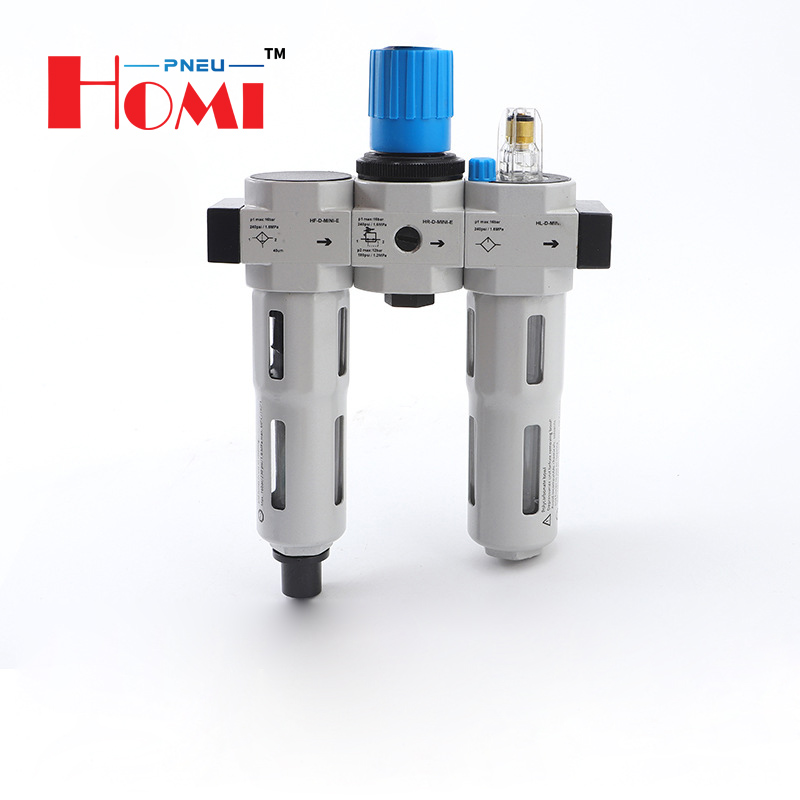

FESTO HC1 (5)

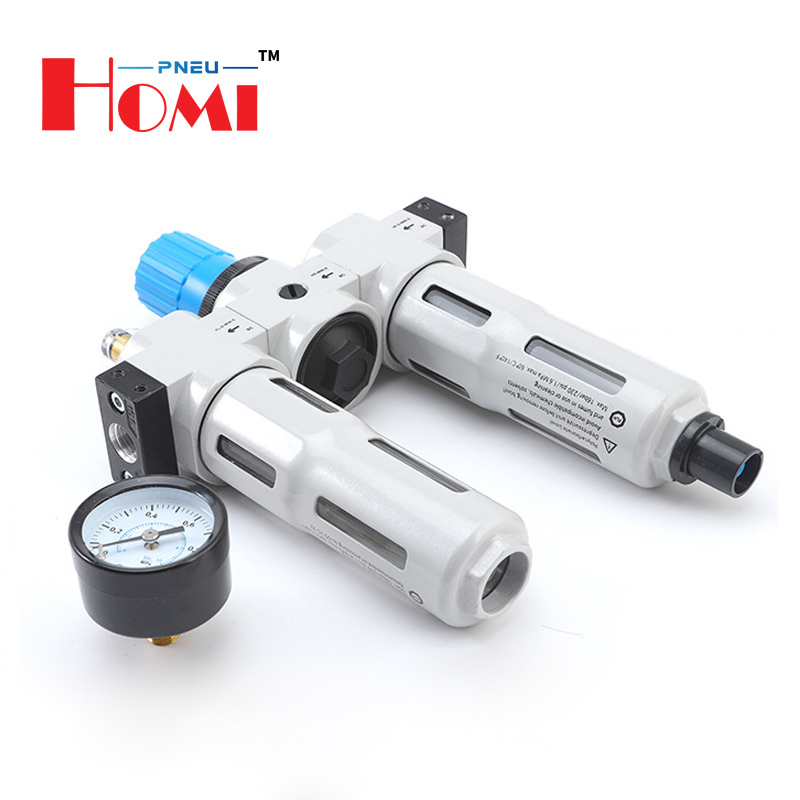

FESTO HC1 (8)

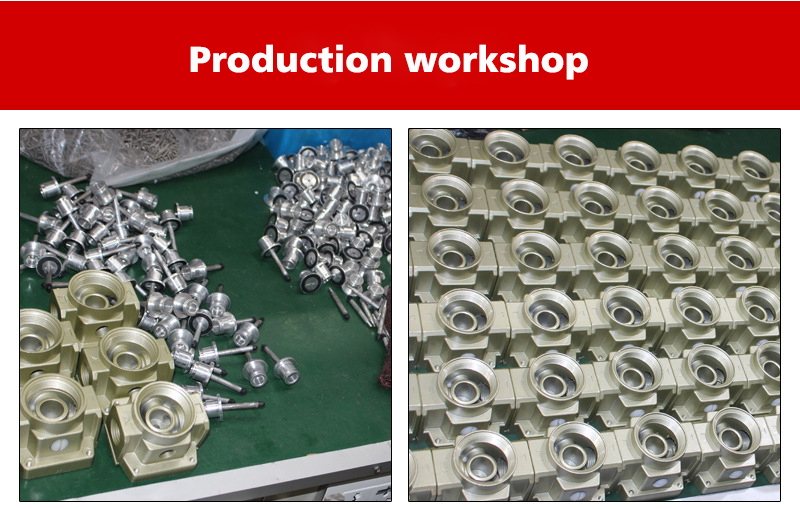

SMC TYPE AF3000-03 (9)

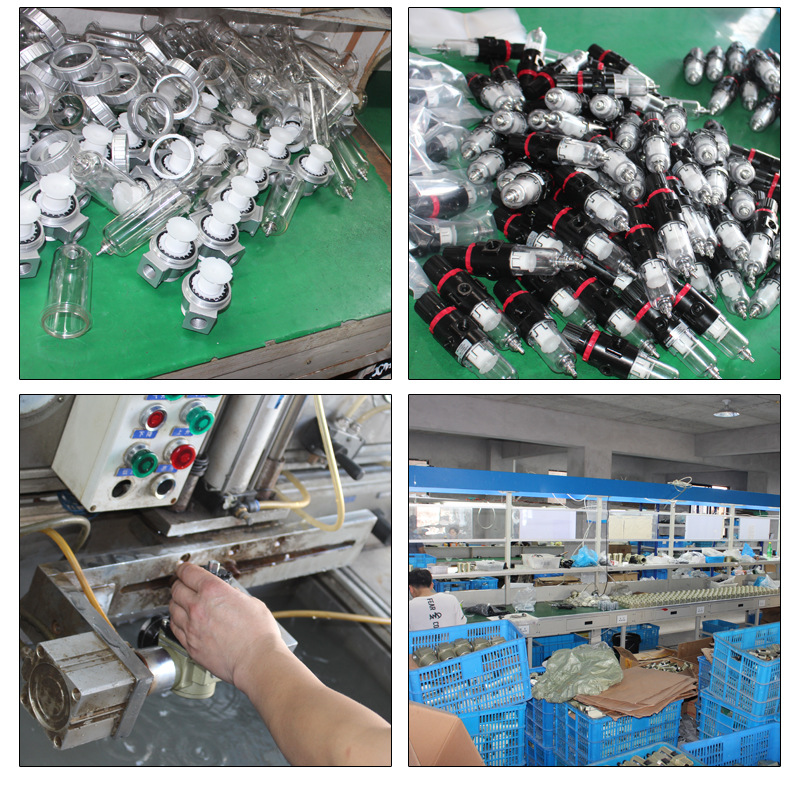

SMC TYPE AF3000-03 (10)
