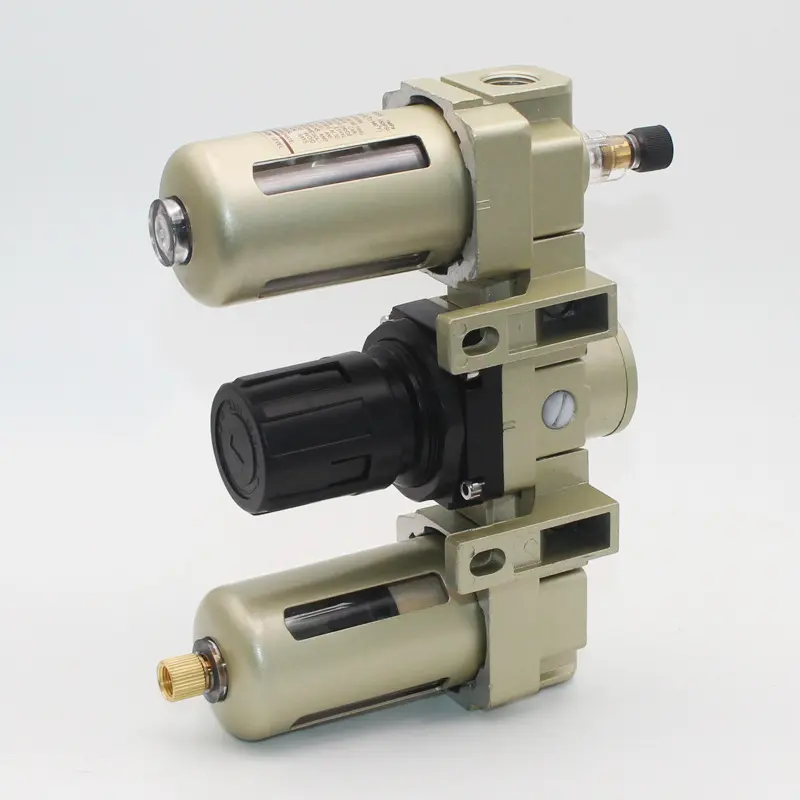

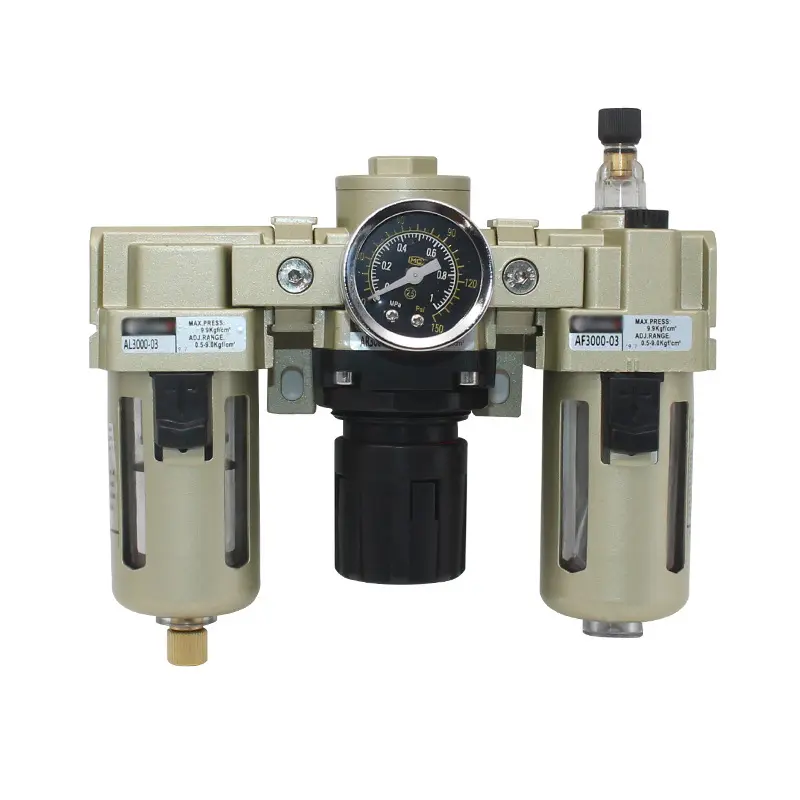

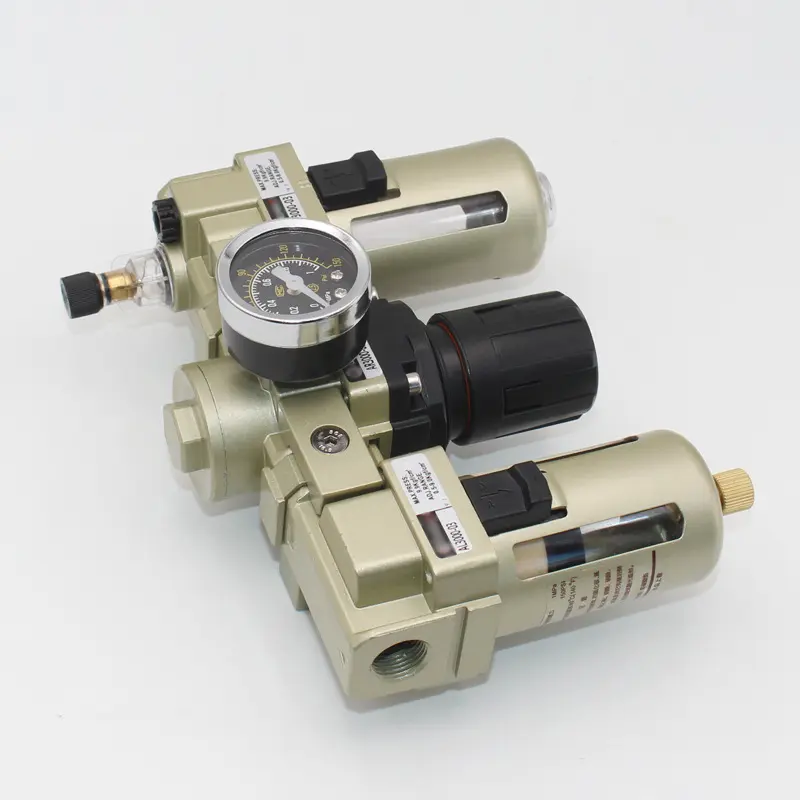

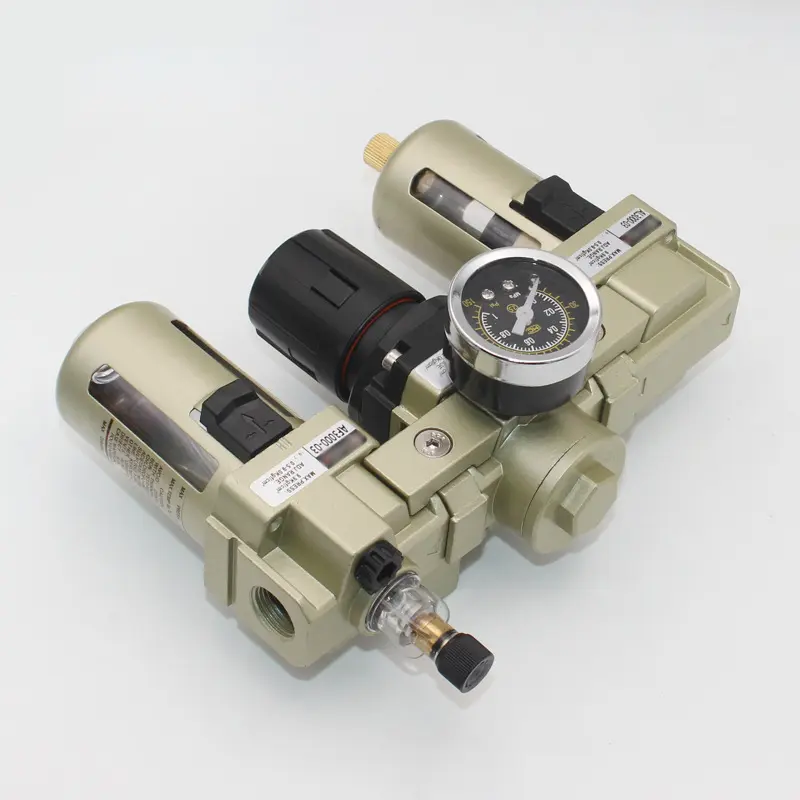

SMC Type AC3000-03 Filter Regulator Lubricator Air Source Treatment Units

SMC-Type Air Source Treatment
The SMC-type air filter unit is a compact and efficient system designed to purify, regulate, and lubricate compressed air in pneumatic systems. It ensures optimal performance by removing contaminants, stabilizing pressure, and providing controlled lubrication (when required) to enhance the longevity and reliability of pneumatic components.

Key Features:
- Filtration: Removes dust, water, and oil particles with high-efficiency filters.
- Pressure Regulation: Maintains consistent air pressure for stable operation.
- Lubrication (Optional): Integrated oil-fog lubrication for smoother actuator performance.
- Compact & Modular Design: Easy installation and integration into pneumatic systems.
- Durable Construction: Corrosion-resistant materials for extended service life.

Applications:
Widely used in industrial automation, manufacturing, packaging, robotics, and machinery requiring clean, regulated compressed air.

EmailContact
  • Details
  • Free Sample
  • Warranty policy

Specification Parameters

Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining, Other
Weight (KG): 0.74
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Type: Filter, SMC TYPE
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Product name: Air Source Treatment Unit
Model: AC4000-04D
Application: Pneumatic Systems
Fluid: Gas Water Oil Air
Working pressure: 0.05~0.85MPa
Working Temperature: -5 -- +60 Degree
Acting type: Filter
Port size: 1/4

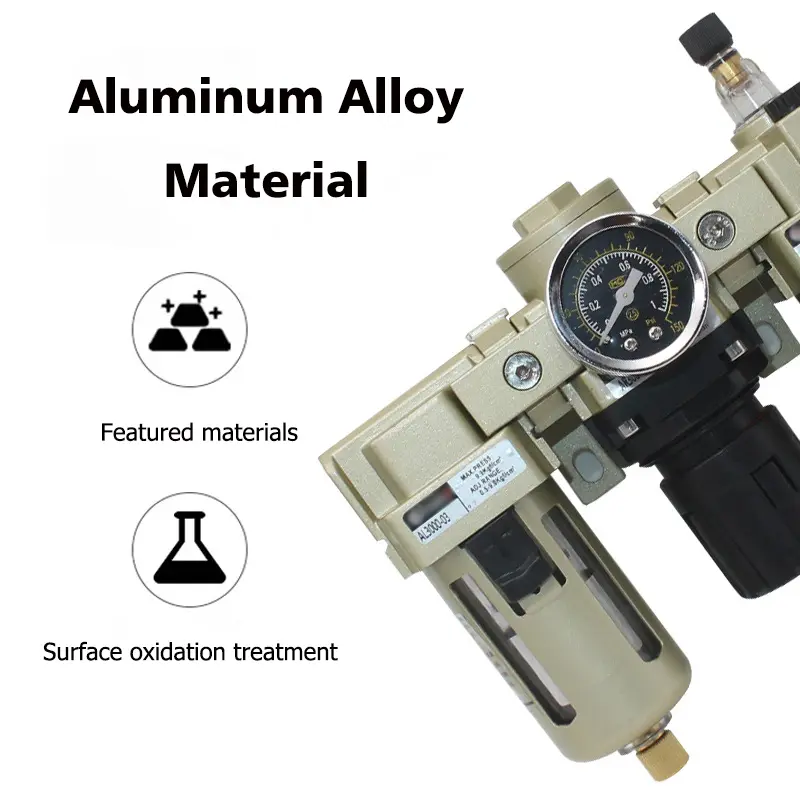

Body Material: Alluminum Alloy

Technical parameter

Specification
Model Components Rated flow Port size Pressure gauge generator Weight(kg)
Manual drain type Automatic drain type Filter Pressure reducing valve Lubricators
AC1000-M5 AC1000-M5D AF1000 AR1000 AL1000 90 M5x0.8 1/16 0.26
AC2000-02 AC2000-02D AF2000 AR2000 AL2000 500  1/4  1/8 0.74
AC3000-02 AC3000-02D AF3000 AR3000 AL3000 2000  1/4  1/8 1.18
AC3000-03 AC3000-03D AF3000 AR3000 AL3000 2000  3/8  1/8 1.18
AC4000-03 AC4000-03D AF4000 AR4000 AL4000 4000  3/8  1/4 2.14
AC4000-04 AC4000-04D AF4000 AR4000 AL4000 4000  1/2  1/4 2.14
AC4000-06 AC4000-06D AF4000 AR4000 AL4000 4500  3/4  1/4 2.47
AC5000-06 AC5000-06D AF5000 AR5000 AL5000 5000  3/4  1/4 3.82
AC5000-10 AC5000-10D AF5000 AR5000 AL5000 500 1"  1/4 3.82

Pressure reducing filter

By filtering the 1iquid oil, condensed water and impurities in the air, the inner tank is detachable, which is convenient for regular maintenance and cleaning. The external aluminum alloy is designed with anti-drop and anti-skid design, and supports manual pressure discharge.

详情图_1

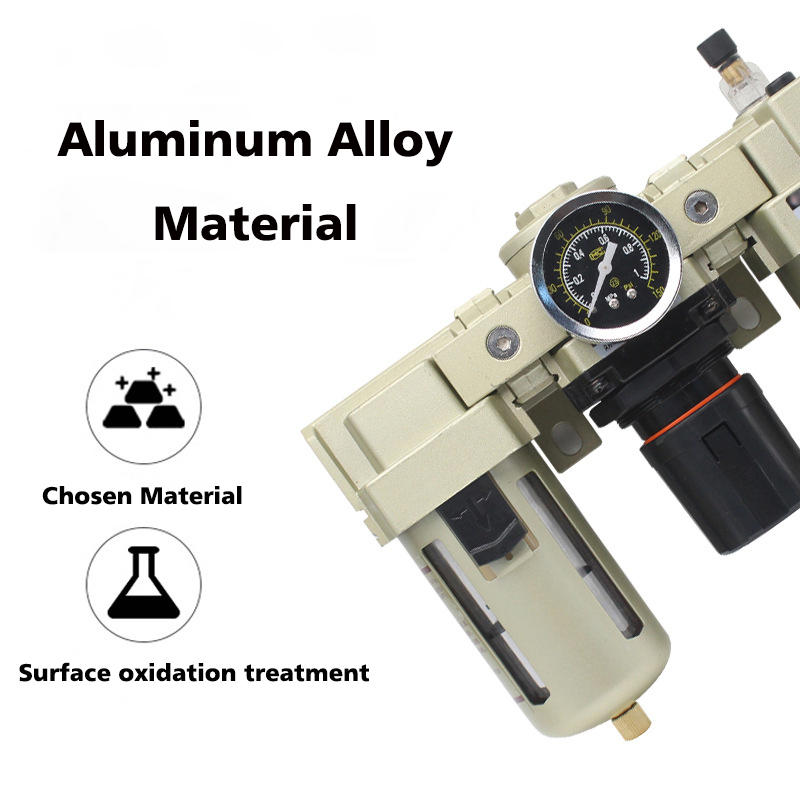

SMC TYPE FITER AC4000-04 (6)

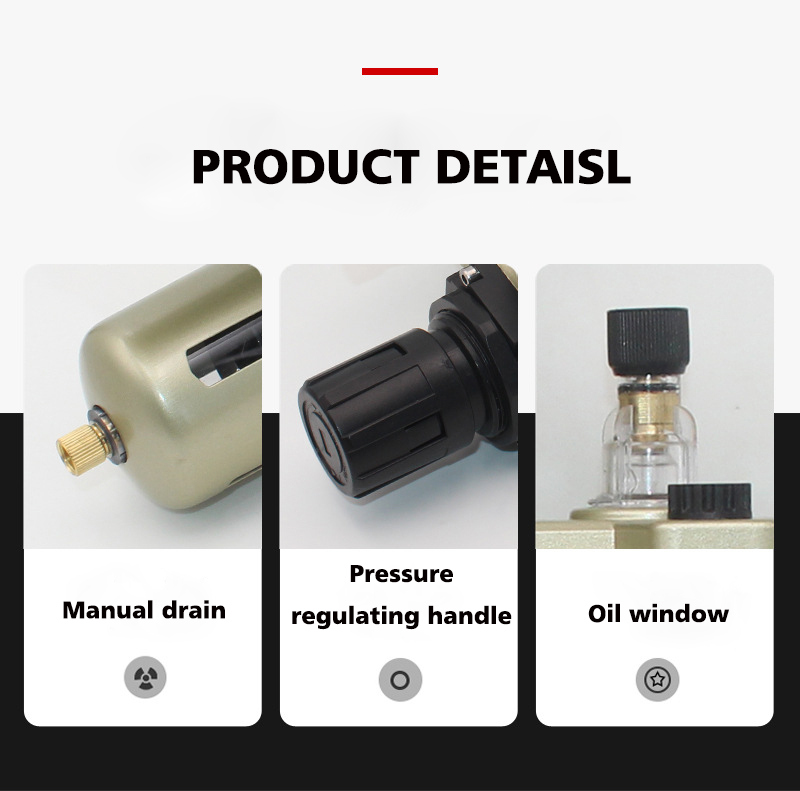

SMC TYPE FITER AC4000-04 (5)
详情图_4
详情图_9
SMC TYPE AF3000-03 (9)
SMC TYPE AF3000-03 (10)
