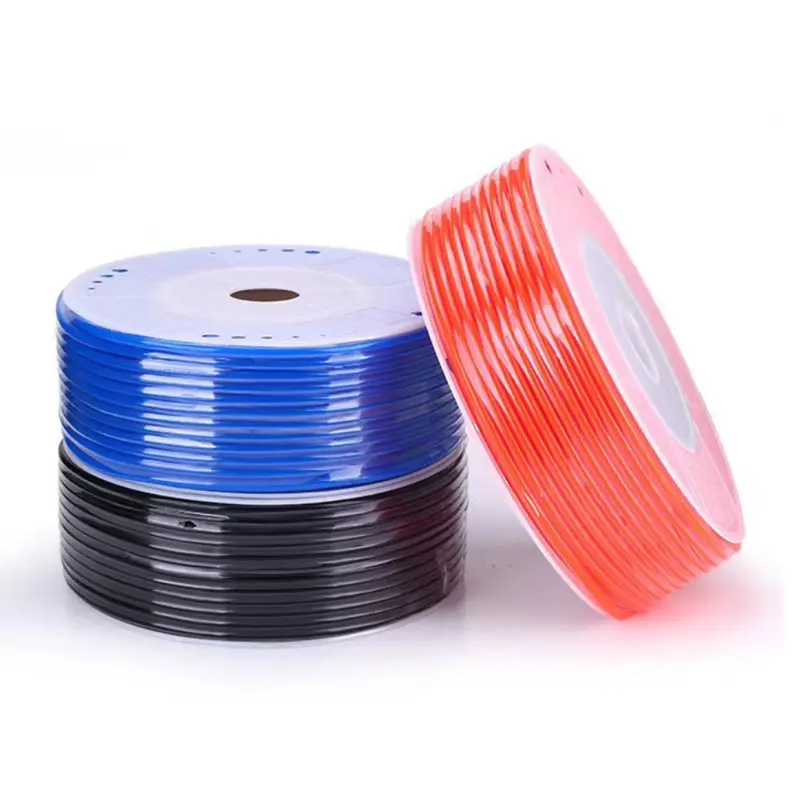

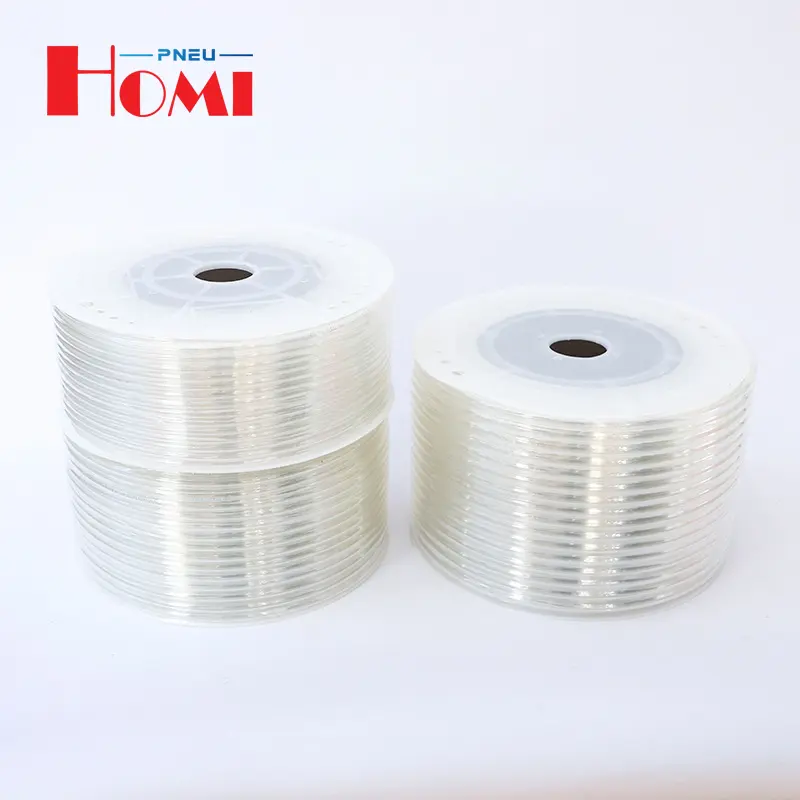

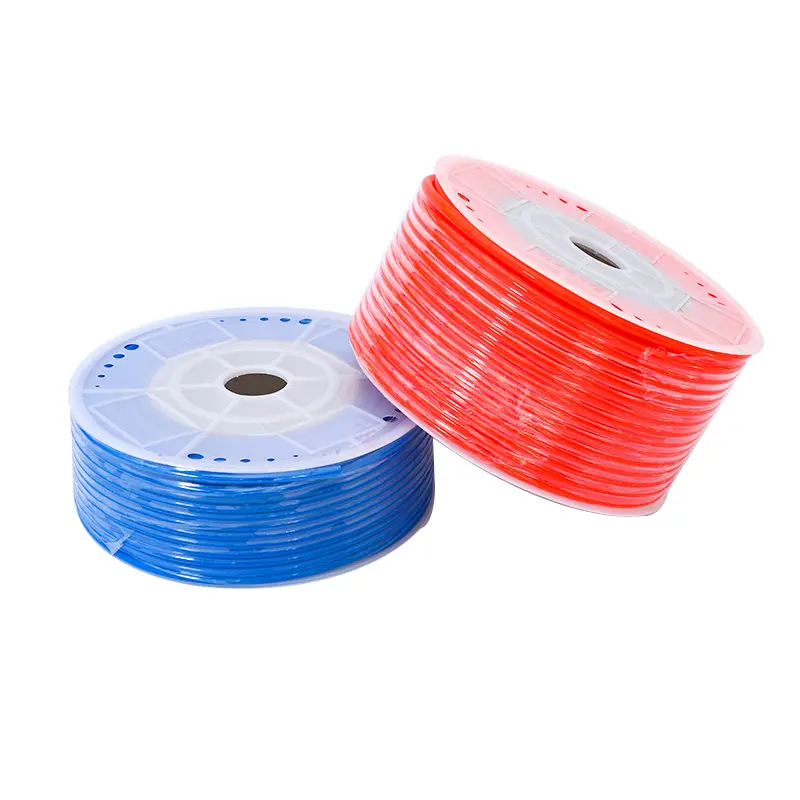

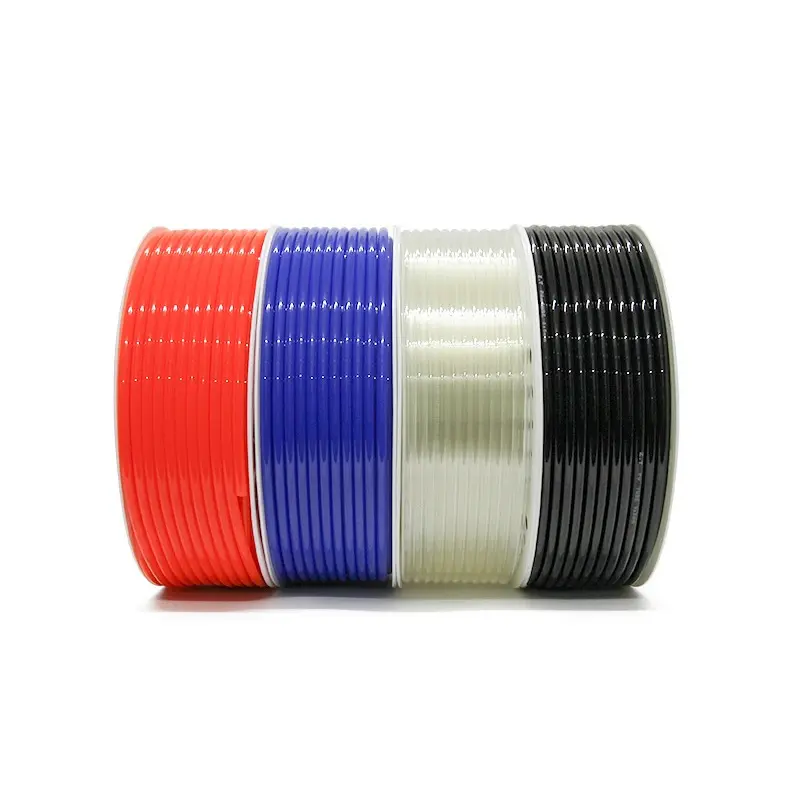

Pneumatic PU hose *Made of new imported polyester TPU raw materials, the pipe wall is smooth and uniform, the size is stable, and the working life is long. *Good resilience, small bending radius, easy to install and cut. Wear resistance, excellent mechanical properties. *The transparent tube has high transparency, and the medium state is clearly visible. *The color tube adopts imported weather resistant color masterbatch, which is bright and will not fade for a long time. *The working pressure at normal temperature (23C) is 1.0MPa, and the bursting pressure is 3.5MPa. The temperature range for normal use is – 20 ° C~+80 ° C, and the recommended temperature for long-term use is – 10C~+60 ° C. *Conventional hardness: 95A, 98A, customized hardness: 70A~62D. *Service medium: air, non corrosive compressed gas and lubricating oil.
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Model Number: PU6*4
Specification: 12*8, 4/6/8/10/12/14/16mm
Length: 200M, 80~200M
Thickness: 1.5mm, 2.0mm
Standard: 98A 95A
Processing Service: Moulding, Cutting
Product name: PU Polyurethane Hose
Material: Polyurethane
MOQ: Negotiable
Working pressure: -0.1Mpa~1.0Mpa
Application: Pneumatic connection
Feature: High Flexibility
Color: Red/Blue/Black/Transparent
Free Sample Request Process:
Select Your Sample: Browse through our product range and choose the sample you'd like to receive.
Submit Your Request: Fill out the sample request form with your shipping details.
Shipping Cost: While the sample itself is free, the buyer is responsible for covering the shipping fee. Please negotiate the shipping cost with us.
Processing: Once your payment is confirmed, we will process your sample request and ship it to your address.
Receive Your Sample: Your sample will be delivered to you within the estimated shipping time. Enjoy trying our product!
1. The warranty period of this product is eighteen months (subject to thefuselage bar code information). During the warranty period, if the productfails or is damaged under normal use according to the operating manual, ourcompany will be responsible for free maintenance.
2. During the warranty period, if damage is caused due to the followingreasons,a certain maintenance fee will be charged,
3. When the product fails or is damaged, please fll in all the contents in the”Product Warranty Card” correctly and in detail.
4. The charge of maintenance fees shall be based on our company’s latestadiusted “Maintenance Price List”.
5. This warranty card will not be reissued under normal circumstances.Please keep this card and show it to the maintenance personnel during thewarranty.
6. If you have any questions during the service process, please contact ouragent or our company in time.The company is committed to upgrading new products. If there are anychanges, you can download them from the company website.
